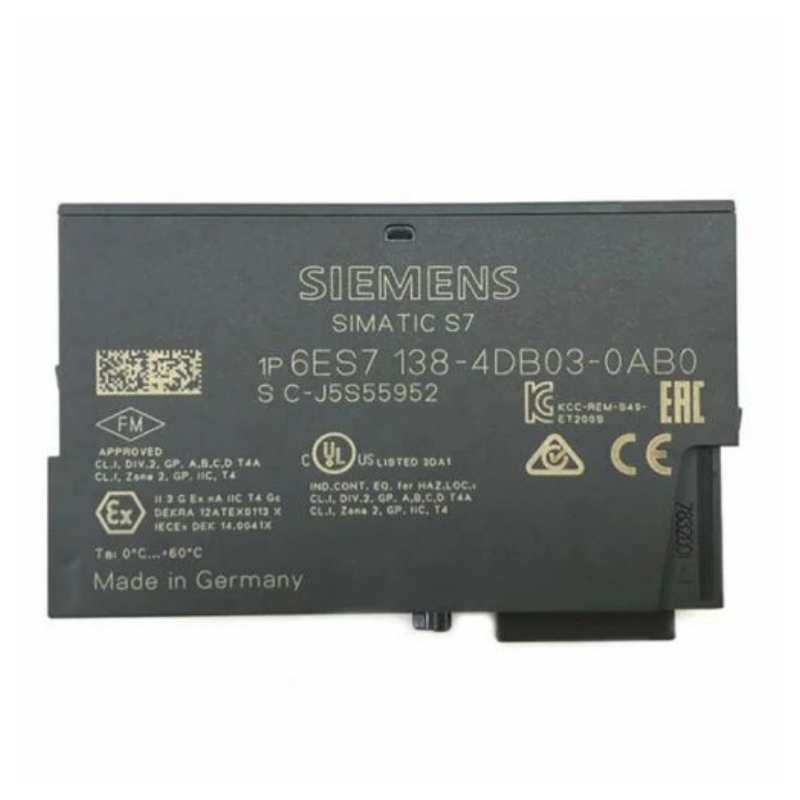

- Product type : SIMATIC DP, Electronics module for ET 200S
- 1 SSI 25 bit/1 MHz 15 mm width
- Module for connection of absolute value encoders with
- SSI Synchronous Serial Interface with DI
- Comparison value withclock synchronization
- Rated value (DC) 24 V
- Permissible range, lower limit (DC) 20.4 V
- Permissible range, upper limit (DC) 28.8 V
- Reverse polarity protection Yes
- Encoder supply : 24 V
- Absolute encoder (SSI) : Yes
- Type of output voltage : L+ (-0.8 V)
- Power loss, typ. : 1 W
- Short-circuit protection : Yes
- Cable length, shielded, max. : 320 m; At 125 kHz
- Monoflop time : 16/32/48/64 ??s”
- Dimensions (LxWxH) : 6,10 x 8,80 x 2,20cm
- Weight :0.045kg
- Country of origin: Germany
