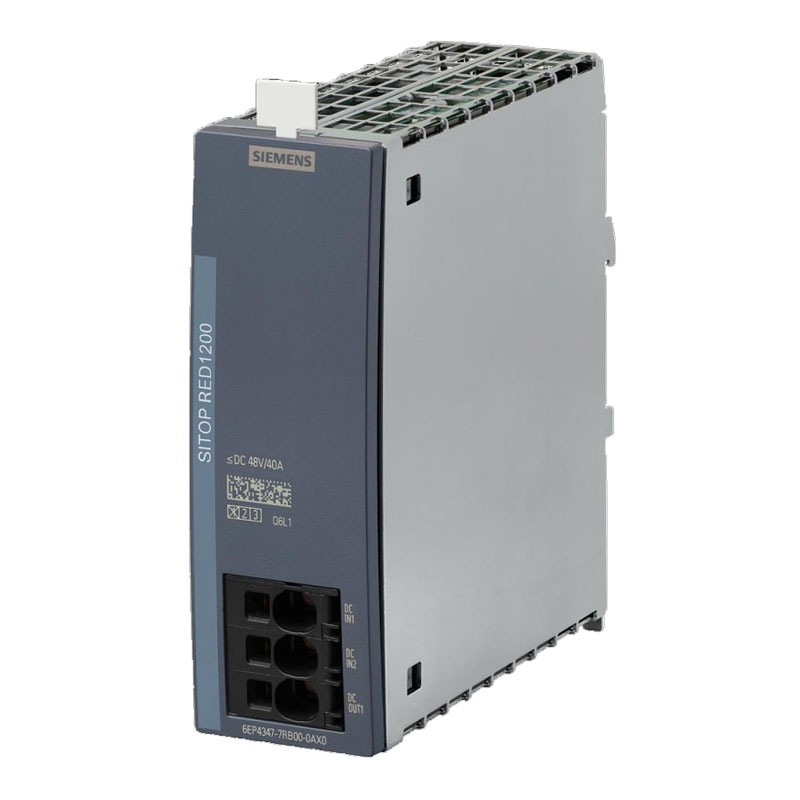

SITOP RED1200 redundancy module Input/output: 24/48 V DC/40 A Suitable for decoupling two SITOP power supplies with max. 20 A output current each
Primary brand
Siemens
Main function
Redundancy unit
Product series / family name
SITOP Redundancy modules
Sub-range name
RED1200
Functions
DC redundancy module
Supply voltage (DC)
10-58Vdc
Type of network
DC input
Rated current
40A
Output voltage (DC)
12Vdc / 24Vdc / 48Vdc
Connection type
Spring-loaded term. connections
Efficiency
97%
Mounting mode
DIN rail (35×7.5 / 35×15)
Degree of protection
IP20
Dimensions
W45mm x H135mm x D125mm
Net Width (mm)
45 mm
Ambient air temperature for operation
-25…+70 ??C
Ambient air temperature for storage
-40…+85 ??C
