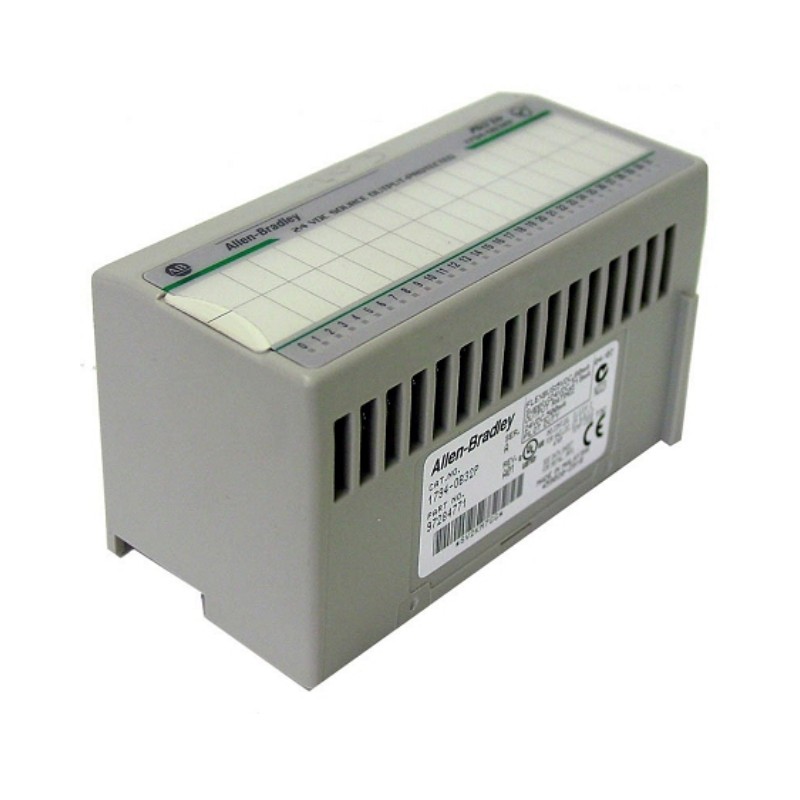

- Product type : FLEX Digital DC Output Module
- Voltage, on-state output, nom : 24V DC, sourcing
- Voltage, on-state output, min : 10V DC
- Voltage, on-state input, max : 31.2V DC
- Voltage drop, on-state output, max : 0.5V DC
- Terminal base unit : 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK
- Current, on-state output, min : 1.0 mA per channel
- Current, off-state output, max : 500 mA per channel, 8 A per module
- Leakage current, off-state output, max : 0.5 mA
- Output surge current, max : 2 A for 50 ms, repeatable every 2 s
- External DC supply current range : 20??65 mA
- Power dissipation, max : 5.3 W @ 31.2V DC
- Thermal dissipation, max : 18.1 BTU/hr @31.2V DC
- Isolation voltage : 50V continuous, I/O to system Tested to 850V DC for 1 s, I/O to system No isolation between individual channels”
- Dimensions(LxWxH) :10.2 cm x 7.6 cm x 5.1 cm
- Weight :0.1kg
- Country of Origin:United States
