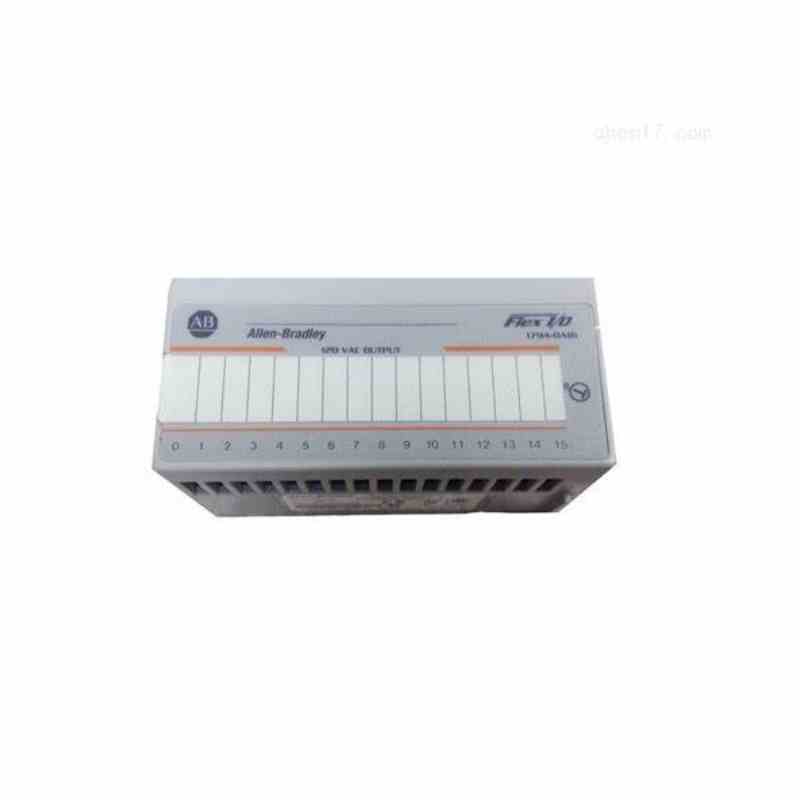

I/O Module, Flex I/O, 16 Point Digital, Output, 4 Amp, 120 Volt AC
Our Bulletin 1794 FLEX? I/O modules offer flexibility for your application with digital, analog, HART analog, and specialty I/O, with 4??32 points per module. You can mix and match digital and analog I/O with mounting and wiring options.
General Specifications Operating Temperature
? FLEX I/O 0…55 oC (32….131 oF)
? FLEX I/O-XT -20/-25…70 oC (-4….185 oF)
Storage Temperature -40…85 oC (-40…185 oF)
Relative Humidity 5…95% non-condensing
Shock, Operating1
30 g peak acceleration, 11(??1) ms pulse width
Shock,
Non-Operating1 50 g peak acceleration, 11(??1) ms pulse width
Vibration1
Tested 5 g @ 10…500 Hz per IEC 68-2-6
Dimensions (HxWxD), Approx. Weight
I/O Modules 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in) 0.1 kg (0.3 lb)
I/O Adapters 87 x 68 x 69 mm (3.4 x 2.7 x 2.7 in) 0.2 kg (0.4 lb)
Terminal Bases 94 x 94 x 69 mm (3.4 x 3.7 x 2.7 in) 0.2 kg (0.5 lb)
Power Supplies 1794-PS13
1794-PS3
87 x 68 x 69 mm (3.4 x 2.7 x 2.7 in) 0.2 kg (0.5 lb)
87 x 94 x 69 mm (3.4 x 3.7 x 2.7 in) 0.4 kg (0.8 lb)
? FLEX I/O 0…55 oC (32….131 oF)
? FLEX I/O-XT -20/-25…70 oC (-4….185 oF)
Storage Temperature -40…85 oC (-40…185 oF)
Relative Humidity 5…95% non-condensing
Shock, Operating1
30 g peak acceleration, 11(??1) ms pulse width
Shock,
Non-Operating1 50 g peak acceleration, 11(??1) ms pulse width
Vibration1
Tested 5 g @ 10…500 Hz per IEC 68-2-6
Dimensions (HxWxD), Approx. Weight
I/O Modules 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in) 0.1 kg (0.3 lb)
I/O Adapters 87 x 68 x 69 mm (3.4 x 2.7 x 2.7 in) 0.2 kg (0.4 lb)
Terminal Bases 94 x 94 x 69 mm (3.4 x 3.7 x 2.7 in) 0.2 kg (0.5 lb)
Power Supplies 1794-PS13
1794-PS3
87 x 68 x 69 mm (3.4 x 2.7 x 2.7 in) 0.2 kg (0.5 lb)
87 x 94 x 69 mm (3.4 x 3.7 x 2.7 in) 0.4 kg (0.8 lb)
