| Manufacturer | Rockwell Automation / Allen-Bradley |
|---|---|
| No. of Outputs: | Two (2) Single Ended |
| Compatible Controllers: | MicroLogix 1500; CompactLogix |
| Conversion Rate | 2.5 ms |
| Power Supply Distance rating: | 8 |
| Analog Ranges: | Voltage: ??10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Full scale analog ranges: | Voltage: ??10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 – 21 mA, 3.2 – 21 mA |
| Resolution: | 14 bits (unipolar); 14 bits plus sign (bipolar) |
| Step response: | 2.9 ms |
| Current draw @ 5.1V: | 120 mA |
| Heat Dissipation: | 2. 36 W |
| Calibration: | None required (guaranteed by hardware design) |
| Slot width: | 1 |
| Brand | Allen-Bradley |

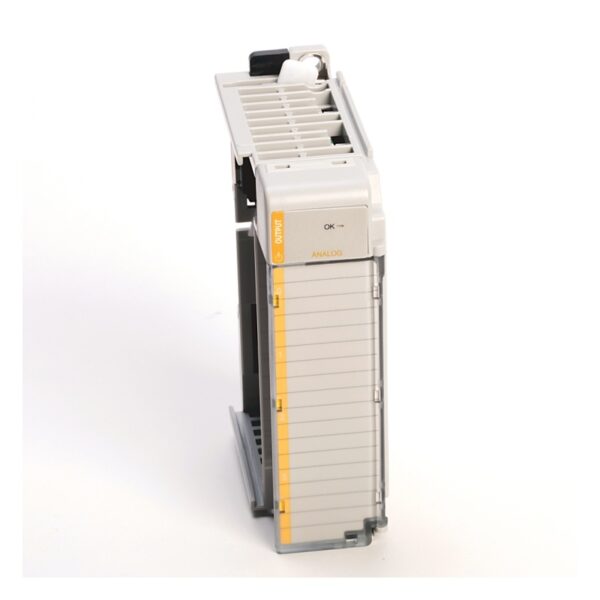

| Part Number/Catalog No. | 1769-OF2 |
| Product Line | CompactLogix |
| Module Type | Analog Output Module |
| Input Type | Analog |
| Communication Cable | 2 Point |
| Shipping Weight | 2 lbs. |
| Shipping Dimensions | 8 x 8 x 5 in. |
| Series | A and B |
| Wire Size (Solid) | 22 to 14 AWG |
| Replacement Terminal Block | 1769-RTBN18 |
| Replacement Door | 1769-RD |
| Mounting | Panel Mount or DIN Rail |
| UPC | 10662468992944 |
| UNSPSC | 32151705 |
