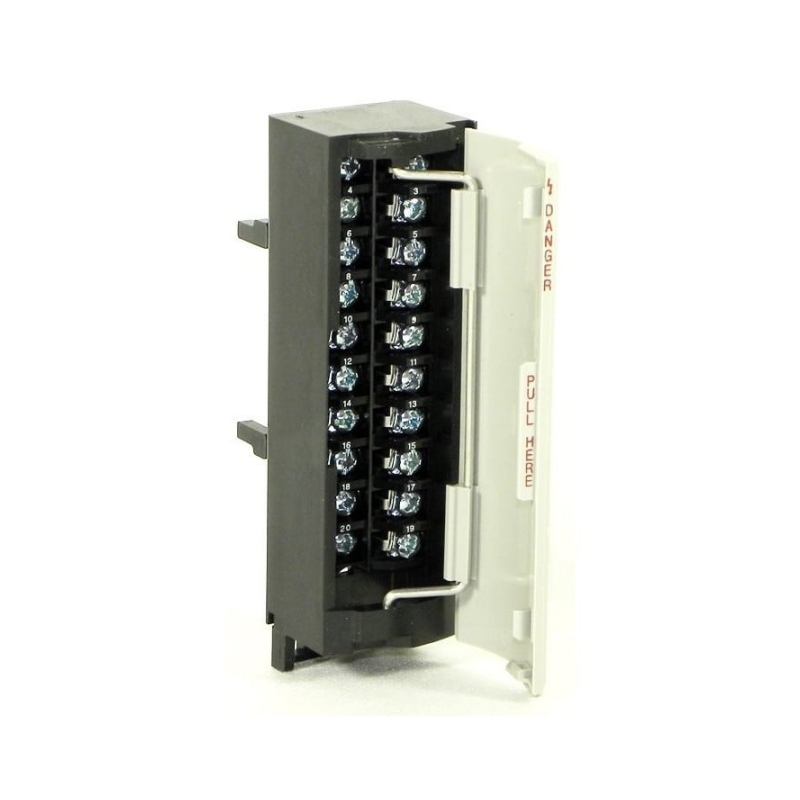

- Product type : 1756 Removable Terminal Blocks
- 20-position NEMA screw-clamp removable block
- Screw torque : 1.36 N?m (12 lb?in)
- Wire size : 0.33??2.1 mm2 (22??14 AWG) solid or stranded copper wire, rated at 90 ??C (194 ??F) or greater, 1.2 mm (3/64 in.) insulation max Do not wire more than two conductors on any single terminal.
- Dimensions(LxWxH): 3.8 cm x 12.1 cm x 5.1 c
- Weight??0.1kg
- Country of Origin: United States
