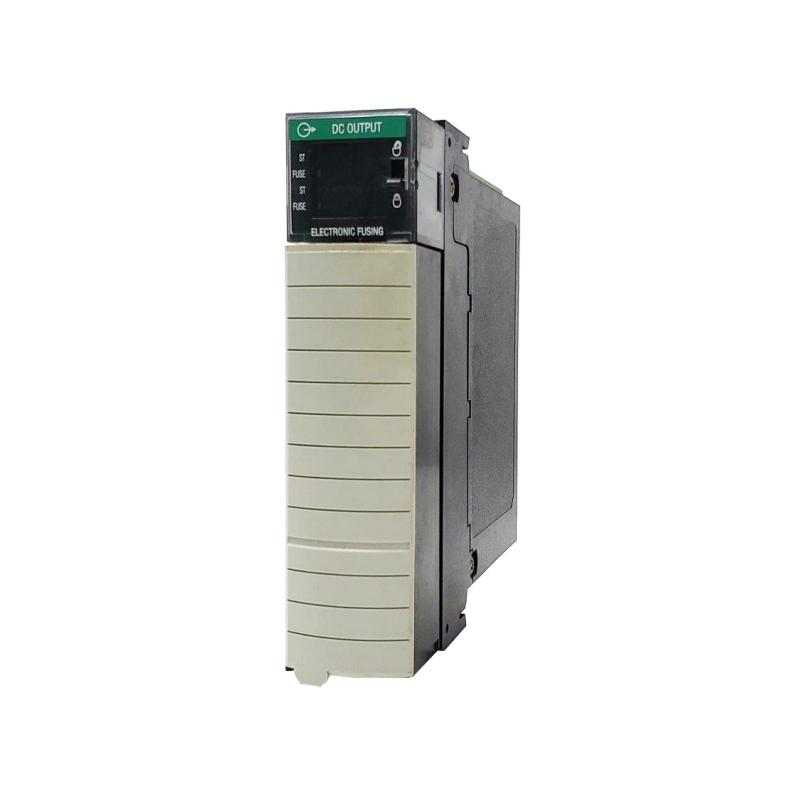

- Product type : ControlLogix DC Output Modules
- Outputs : 16 electronically fused (8 points/group)
- Voltage category : 12/24V DC source
- Operating voltage range : 10??31.2V DC
- Current draw @ 5.1V : 250 mA
- Current draw @ 24V : 2 mA
- Total backplane power : 1.32 W
- Power dissipation, max : 4.1 W @ 60 ??C (140 ??F)
- Thermal dissipation : 13.98 BTU/hr
- Scheduled outputs : Synchronization within 16.7 s max, reference to the Coordinated System Time
- Isolation voltage : 250V (continuous), basic insulation type, outputs-to-backplane, and output group-to-group No isolation between individual group outputs
- Routine tested @ 1350V AC for 2 s”
- Dimensions(LxWxH):5.1 cm x 15.2 cm x 15.2 cm
- Weight??0.3kg
- Country of Origin: ? United States
