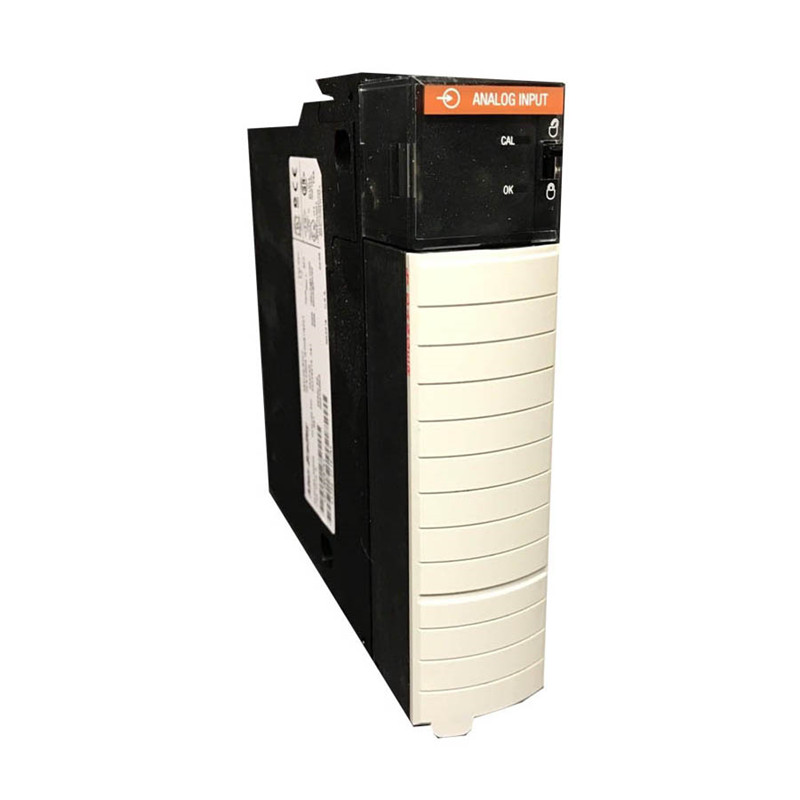

- Product Type : Analog Input Module
- Inputs : 16 single ended, 8 differential or 4 differential (high speed)
- Input range: ??10V, 0??10V, 0??5V, 0??20 mA
- Current draw @ 5.1V : 150 mA
- Current draw @ 24V : 65 mA
- Power consumption : 2.3 W
- Power dissipation: Voltage: 2.3; W Current: 3.9 W
- Thermal dissipation: Voltage: 7.84 BTU/hr ; Current: 13.3 BTU/hr
- Isolation voltage : 250V (continuous), Reinforced insulation type, Inputs-to-Backplane. No isolation between individual Inputs. Routine tested at 1350V AC for 2 s
- Slot width : 1
- Module keying : Electronic, software configurable
- RTB keying : User-defined mechanical
- Weight : 0.4kg
- Dimensions (L x W x H) : 15.2 cm x 5.1 cm x 15.2 cm
- Country of origin ??United States
