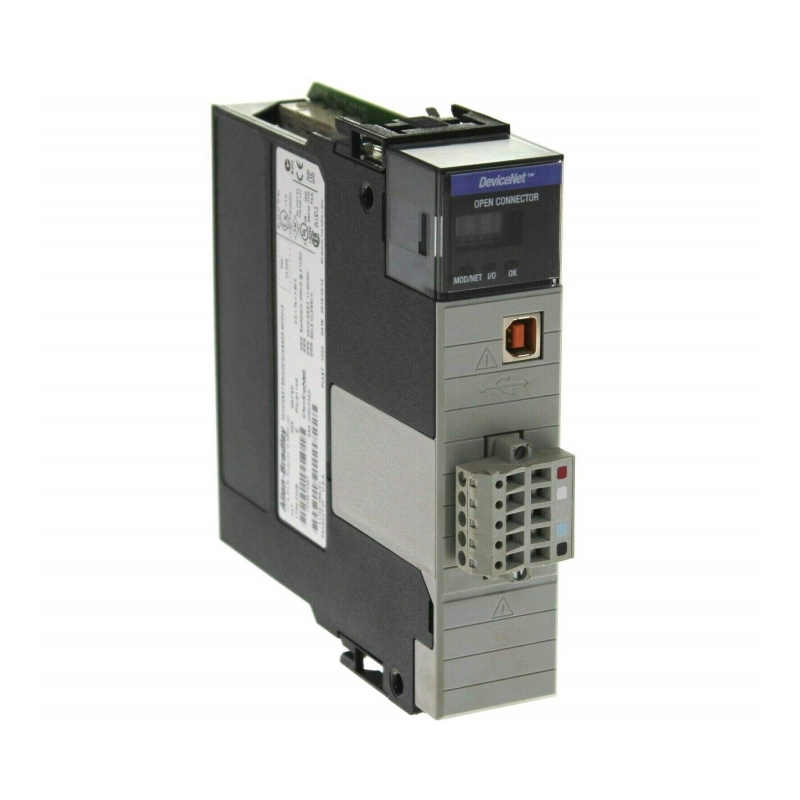

- Product type : ControlLogix DeviceNet Scanner Module
- Module location : Any slot in the ControlLogix chassis
- DeviceNet communication rate, max : 125 Kbps – 500 m (1640 ft.) max ; 250 Kbps – 250 m (820 ft.) max ; 500 Kbps – 100 m (328 ft.) max
- Backplane current (mA) at 5.1V DC : 850 mA
- Backplane current (mA) at 24V DC : 3 mA
- DeviceNet current (mA), max : 11??25V DC (60 mA max)
- Isolation voltage, continuous 30V (continuous), Basic Insulation Type. No isolation between USB and system. Tested at 500V AC for 60 s, DeviceNet to system
- Enclosure type rating : None (open-style)
- North American temp code : T4A
- IEC temp code : T4
- Power dissipation, max : 5.8 W
- Thermal dissipation, max : 19.8 BTU/hr
- Recommended USB cable for USB port : Samtec cable, PN RSP-119350
- Dimensions(LxWxH):5.1 cm x 15.2 cm x 15.2 cm
- Weight??0.2kg
- Country of Origin: United States
