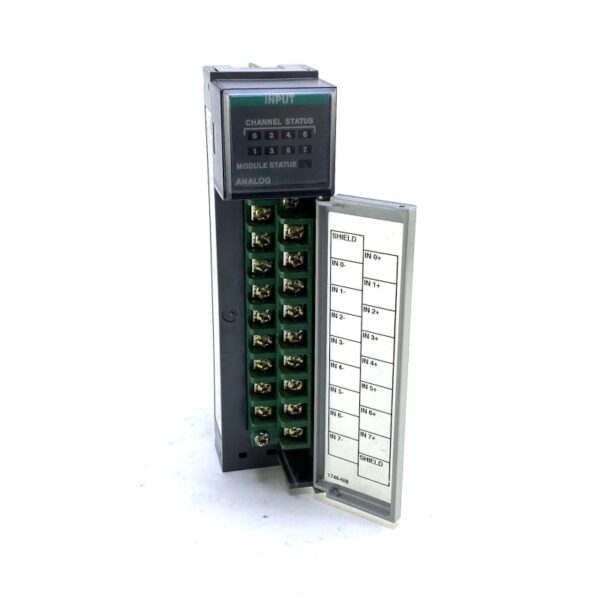

- Product type :??Analog Input Module
- Backplane Current Consumption : 200 mA at 5V dc, 100 mA at 24V dc
- Backplane Power Consumption : 3.4W maximum (1.0W @ 5V dc, 2.4W @ 24V dc)
- Number of Channels 8 : (backplane isolated)
- I/O Chassis Location : Any I/O module slot except slot 0
- A/D Conversion Method : Successive approximation, switched capacitor
- Isolation : 50V dc continuous between the analog inputs and the backplane 530V ac and 750V dc pulse withstand for 1 second
- LED Indicators : 9 green status indicators one for each of 8 channels and one for module status
- Recommended Cable : Belden #8761 or equivalent
- Maximum Wire Size : Two 14 AWG wires per termina
- Storage Temperature : -40??C to +85??C (-40??F to +185??F)
- Relative Humidity : 5% to 95% (without condensation)
- Dimensions(LxWxH): 12.7? x 5.1? x 15.2 cm
- Weight??0.3kg
- Country of Origin: Singapore
